CE / ISO9001 Non Woven Fabric Making Machine For Geotextiles And Agriculture

Ask Lasest Price
Brand Name :	AL
Model Number :	S/SS/SSS
Certification :	CE/ISO9001
Price :	USD 250000 SET
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	10 SET YEAR
Delivery Time :	90 works day

Add to Cart

Product Details
Company Profile

CE / ISO9001 Non Woven Fabric Making Machine For Geotextiles And Agriculture

Product Application

CE / ISO9001 Non Woven Fabric Making Machine For Geotextiles And Agriculture

This polypropylene(pp) spunbonded nonwoven fabric production line has advantages of superior performance, beautiful color, and good quality.
It can form a fibre web symmetrically and is complete in types. It can also add recycled material and stuffing to reduce the cost of products.Wide application of products, for example Household Items, Medical And Hygiene Articles, Commodity And Labor Protection Products, Garments And Shoes, Industrial and Agricultural Usage Etc.

To provide integrated services for our clients

Technical Parameters ( Standard Specification) of Our Nonwoven Machine
	Model No.	Gram Weight	MaxSpeed(m/min)	Capacity(T/Days)	Equipment Size
AL-S (single beam)	1.6m	10-180	200	4	151013m
	2.4m			7-8	151013m
	3.2m			9-10	151013m
AL-SS (single beam)	1.6m	10-150	400	9-10	291313m
	2.4m			13-14	301413m
	3.2m			18-19	321513m
AL-SSS (single beam)	1.6m	10-150	450	12-13	311313m
	2.4m			24-25	321413m
	3.2m			28-30	341513m

CE / ISO9001 Non Woven Fabric Making Machine For Geotextiles And Agriculture

Technical Advantages

1) The whole line is well-structured and easy to operate.
2) The whole line is highly automated.
3) Control elements are of well-know make, high performance and reliable technologies.
4) The whole line are controlled by PLC and operated with touch-screen.
5) The allocation of the main frame and auxiliary equipment can be special designed and adjusted according to customers requirement.

Certifications

Detailed Images

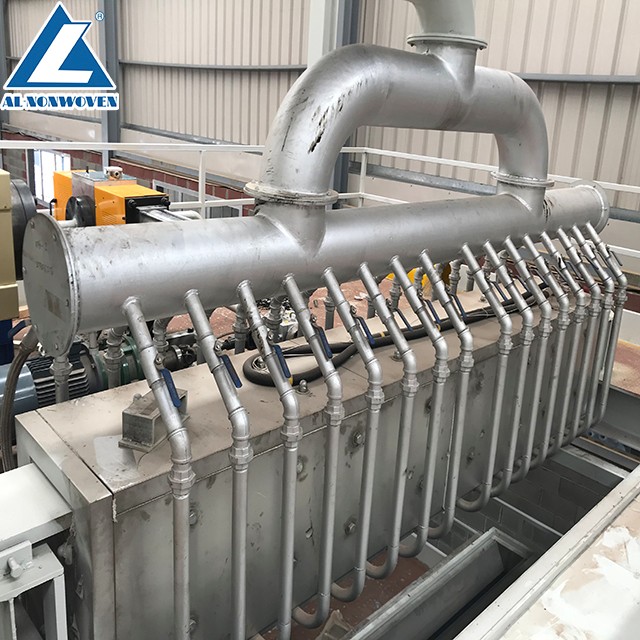

Name: Filter

Brand: AL

Original: CHINA

Type: candle filter

Filter precision: 45um-60um

Filtration area: 2.5m² for 1.6m

3.5m² for 3.2m

Max pressure: 12mpa for 1.6m

16mpa for 3.2m

Heal source: heat- transfer oil

circular heating

Name: Spinning Box
Brand: AL
Original: CHINA
Orifice number: 11019 for 1.6m

17651 for 3.2m

Orifice diameter: ф 0,45mm

L/D= 4:1

Max temperature: 300℃

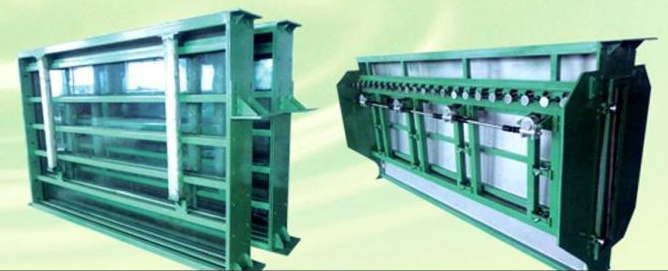

Name: Stretching Device
Brand: AL
Original: CHINA
Its function is drawing spinning spinning filaments into web forming machine by air.

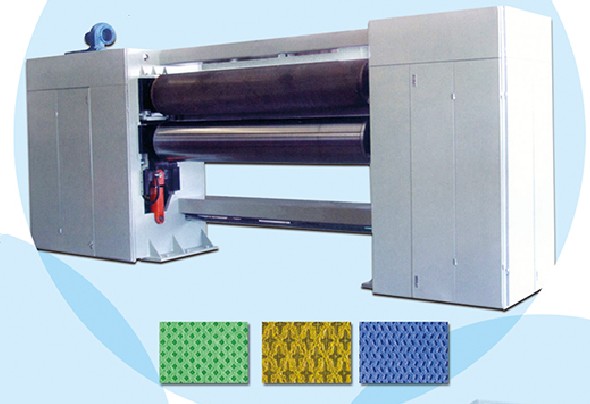

Name: Calender
Brand: AL
Original: CHINA
Roller width: 2000mm for 1.6m

3600mm for 3.2m

Roller diameter: ф420mm-520mm

Roller pressure: ≤150kg/cm²

Speed: 10-150m/min for S type

10-300m/min for SS/SMS type

Motor: 30kw for 1.6m

45kw for 3.2m

pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

SMS nonwoven fabric making mchine for medical
