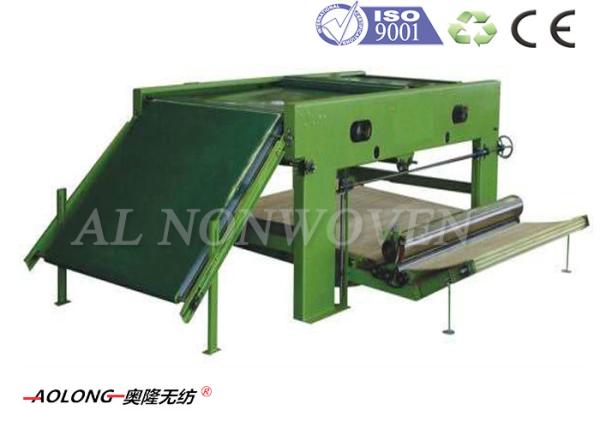

Non Woven Fiber Cross Lapper Machine Spreading 4000mm 380V 50Hz

Quick Details

1> 100% new

2> Width : 2700mm

3> Automatic

4> Voltage : 380V 440V 415V

5> CE; ISO9001

Function

After carding, filter net is sent to double belts cross lapper through the non-skid , it will be layered on the downside curtain, then sent to next equipment by adjustable moving curtain . The cross lapper can be used in wasted felt making , chemical bonded wadding making , synthetic PU leather substrate making etc .

Technical Data

- Input width:2700 mm

- Spreading width:4000 mm;

- Mechanical speed: Design speed: 120 m/min

Working speed: ≤100m/min

- Driving motor:

Front apron: servo motor(46N.m,2000r.p.m),1 SET;

Rear apron: servo motor(46N.m,2000r.p.m),1 SET

Bottom apron: servo motor(46N.m,2000r.p.m),1 SET;

Front apron to-and-fro: servo motor(46N.m,2000r.p.m)+ speed reducer ,1 SET;

Rear apron to-and-fro: servo motor(10N.m,3000r.p.m)+ speed reducer ,1 SET;

- The front and rear apron has the electrical edge position centering system

- Spreader’s roller is made of carbonous fiber.
